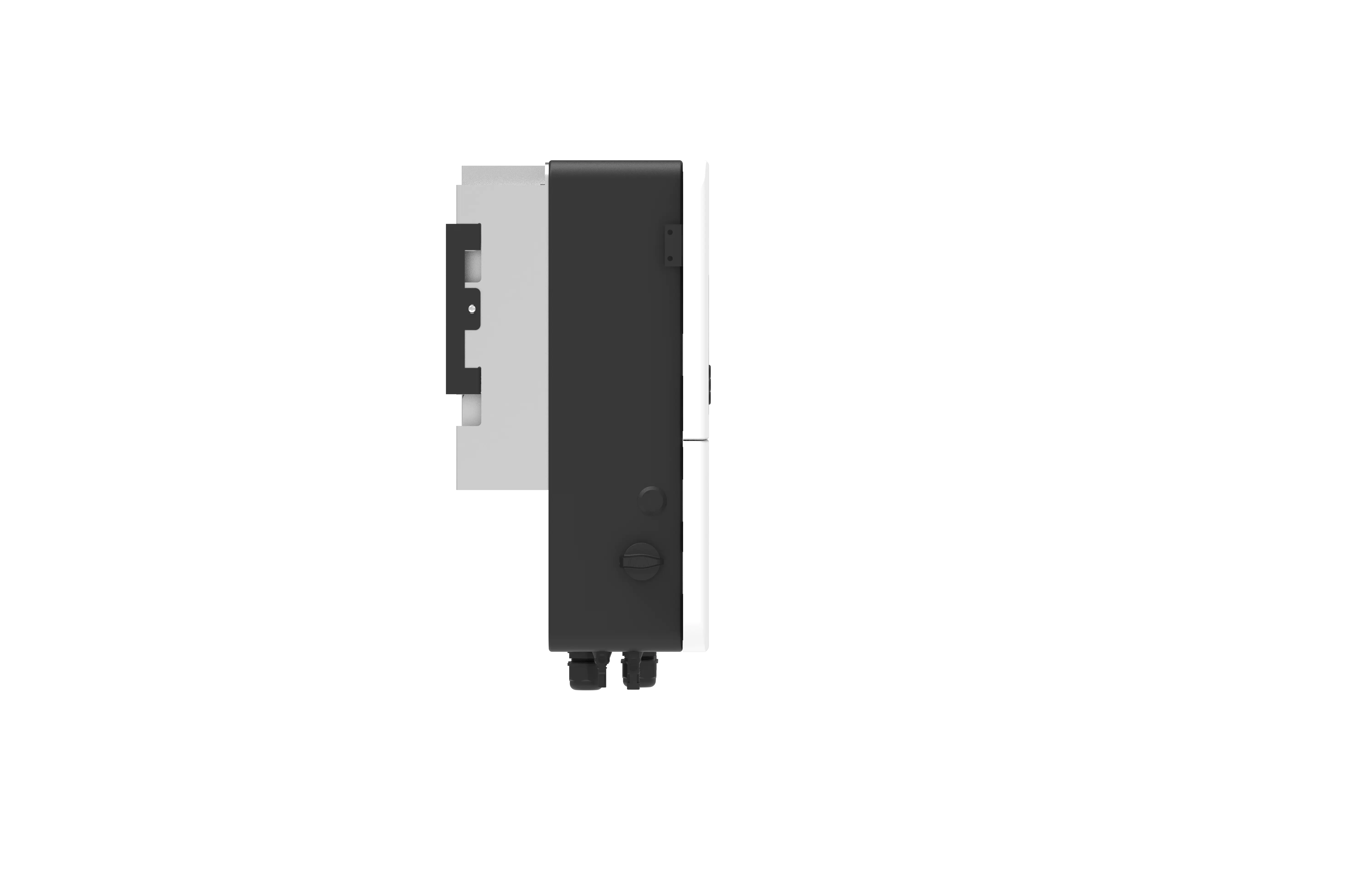

Deye Low-voltage 1 Phase Hybrid Inverter

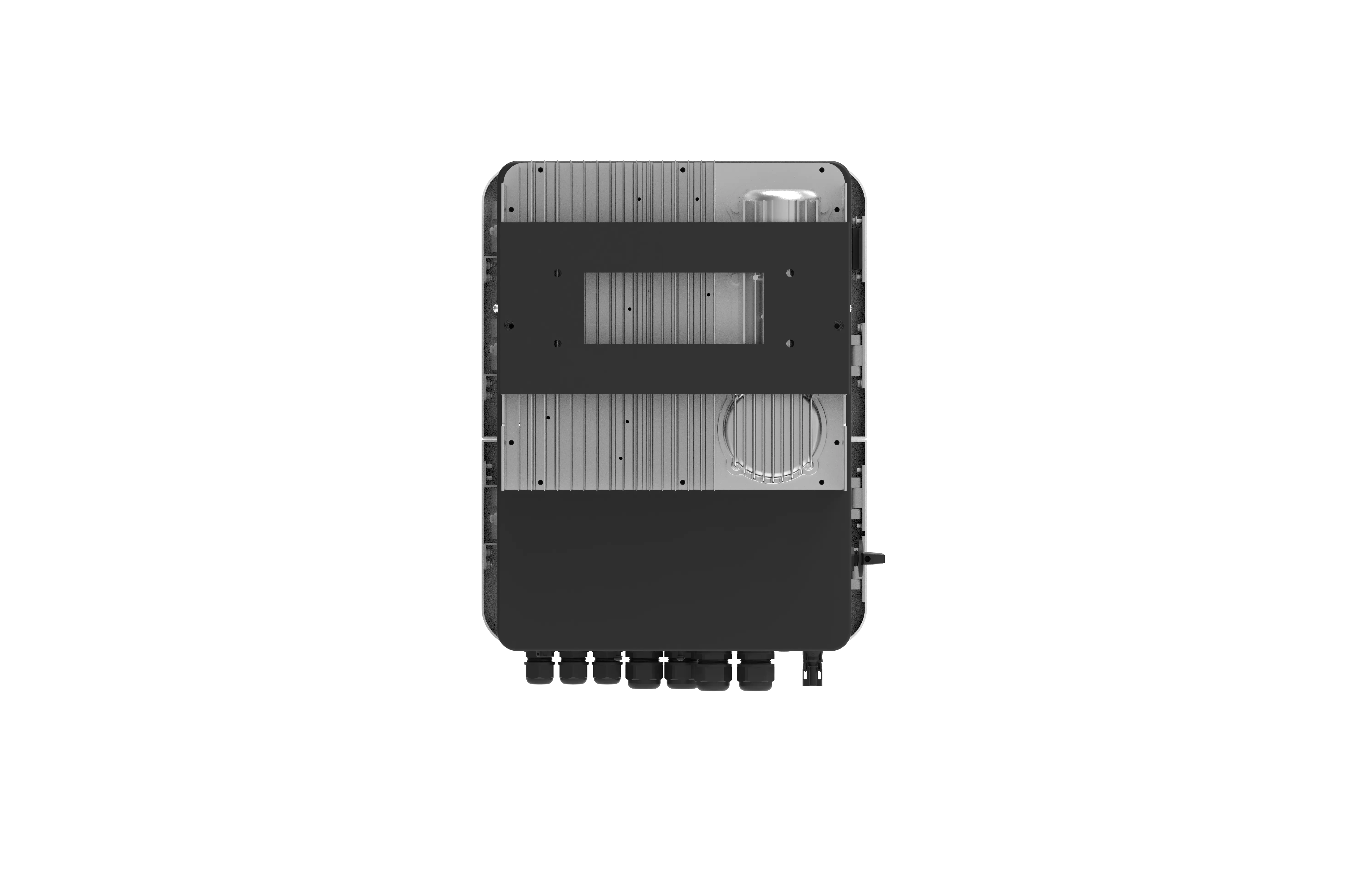

Deye Low-voltage 1 Phase Hybrid Inverter

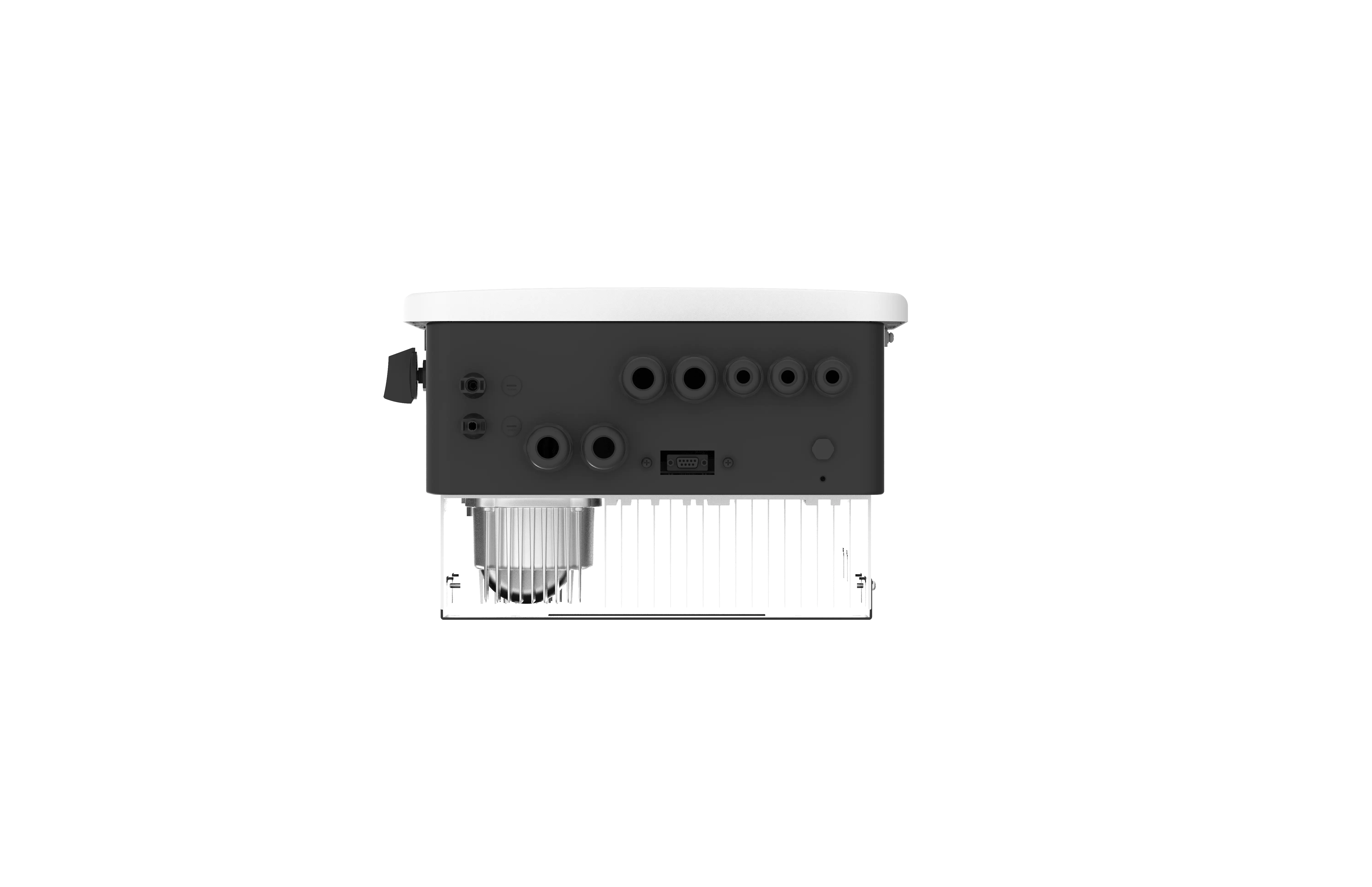

Deye Low-voltage 1 Phase Hybrid Inverter

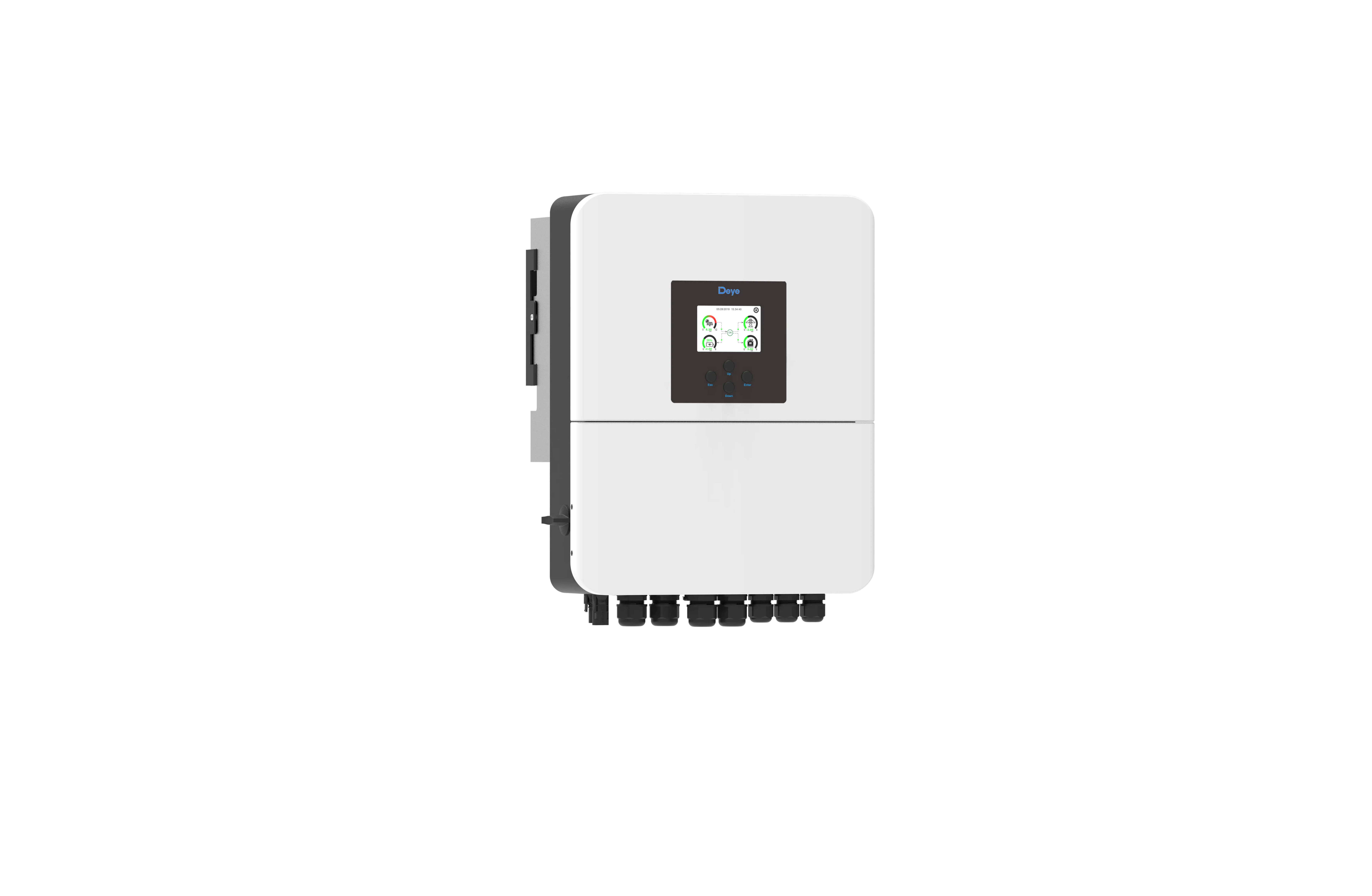

Deye Low-voltage 1 Phase Hybrid Inverter
Deye Low-voltage 1 Phase Hybrid Inverter

Deye Low-voltage 1 Phase Hybrid Inverter

•     Colorful touch LCD, IP65 protection degree

•     AC couple to retrofit existing solar system

•     Max. 16 pcs parallel for on-grid and off-grid

          operation; Support multiple batteries parallel

•     Max. charging/discharging current of 140A

•     6 time periods for battery charging/discharging

•     Support storing energy from diesel generator


  • Model: SUN-(3-6)K-SG04LP1-24-EU-SM
  • Brand: Deye

  • Product Datasheet

Description



Model

SUN-3K-SG04LP1-24-EU-SM1

SUN-3K-SG04LP1-EU-

SM1

SUN-3.6K-SG04LP1-EU-

SM2

SUN-5K-SG04LP1-EU-

SM2

SUN-6K-SG04LP1-EU-

SM2

Battery Input Data

Battery Type

Lead-acid or Lithium-ion

Battery Voltage Range(V)

20-30

40-60

Max.Charging Current(A)

140

70

90

120

135

Max.Discharging Current(A)

140

70

90

120

135

Charging Strategy for Li-ion Battery

Self-adaption to BMS

Number of battery input

1

PV String Input Data

Max. PV Access Power (W)

6000

6000

7200

10000

12000

Max PV Input Power(W)

4800

4800

5760

8000

9600

Max PV Input Voltage(V)

500

Start-up Voltage(V)

125

MPPT Voltage Range(V)

150-425

Rated PV Input Voltage(V)

370

Max Operating PV Input Current(A)

18

18+18

Max Input Short-Circuit Current(A)

27

27+27

No.of MPP Trackers/No.of String Per MPP Tracker

1/1

2/1+1

AC Input/Output Data

Rated AC Input/Output Active Power(W)

3000

3600

5000

6000

Max AC Input/Output Apparent Power (VA)

3300

3960

5500

6600

Rated AC Input/Output Current(A)

13.7/13.1

16.4/15.7

22.8/21.8

27.3/26.1

Max AC Input/Output Current(A)

15/14.4

18/17.3*

25/24

30/28.7

Max Continuous AC Passthrough(grid to load)(A)

35

40

Peak Power (off-grid)(W)

2 times of rated power,10s

Rated Input/Output Voltage/Range(V)

220V/230 0.85Un-1.1Un

Grid Connection Form

L+N+PE

Rated Input/Output Grid Frequency/Range

50Hz/45Hz-55Hz     60Hz/55Hz-65Hz

Power Factor Adjustment Range

0.8 leading to 0.8lagging

Total Current Harmonic Distortion THDi

<3% (of nominal power)

DC Injection Current

<0.5%ln

Efficiency

Max Efficiency

97.6%

Euro Efficiency

96.5%

MPPT Efficiency

>99%

Equipment Protection

Integrated

DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection,

AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding

Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection

Surge Protection Level

TYPE II(DC),TYPE II(AC)

Interface

Communication Interface

RS485/RS232/CAN

Monitor Mode

GPRS/WIFI/Bluetooth/4G/LAN(optional)

General Data

Operating Temperature Range

-40 to+60℃,>45℃ Derating

Permissible Ambient Humidity

0~100%

Permissible Altitude

2000m

Noise

<45

Ingress Protection(IP) Rating

IP 65

Inverter Topology

Non-Isolated

Over Voltage Category

OVC II(DC),OVC III(AC)

Cabinet size(W*H*D)[mm]

376*470*241.5(Excluding connectors and brackets)

Weight[kg]

17.6

19

Warranty

5 Years/10 Years

the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy

Type Of Cooling

natural cooling

Grid Regulation

IEC 61727,IEC 62116,CEI 0-21,EN 50549,NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G98,G99,VDE-AR-N 4105

Safety EMC/Standard

IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

*For the SUN-3.6K-SG04LP1-EU-SM2, the maximum output current will be capped at 15.7A to comply with the G98 standard.
